Rawlplug Rawlbolt Loose Bolt M10/10L (5 Pack)
High-strength Rawlplug Rawlbolt Loose Bolt for concrete, ceramics & fire-resistant applications. M10/10L, 5 per bag.

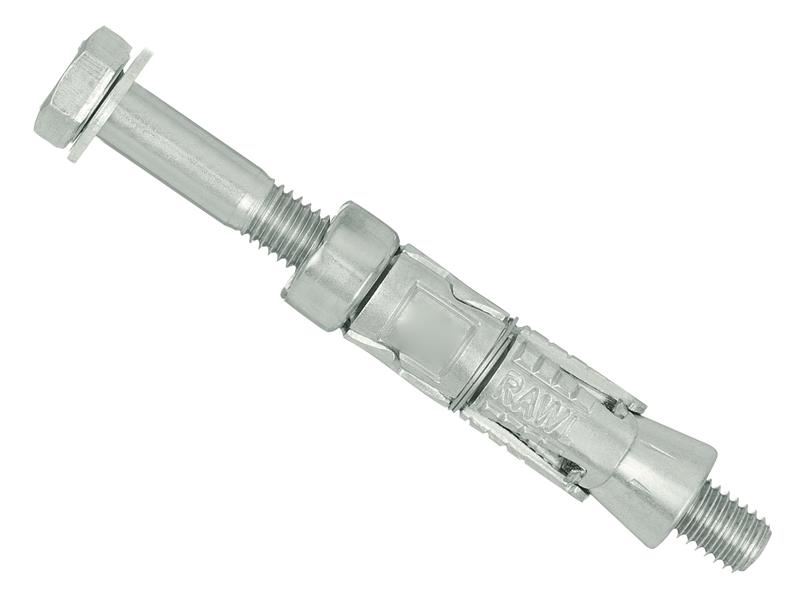

The Rawlplug Rawlbolt® Loose Bolt is a high-performance anchoring solution designed for use in various substrates, including cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. Its robust construction ensures reliability in applications requiring fire resistance.
Featuring a three-piece expanding sleeve, this anchor provides maximum expansion for optimal load distribution and safety in any substrate. Recognised as the world's most popular all-purpose expanding shield anchor, the loose bolt version offers unparalleled versatility for both commercial and industrial applications.
Key Features & Specifications
- Anchor Specifications:
- Diameter: 10mm
- External Diameter: 16mm
- Length: 75mm
- Fixture Specifications:
- Max. Thickness: 10mm
- Hole Diameter: 11mm
- Hole Diameter in Substrate: 16mm
- Installation Specifications:

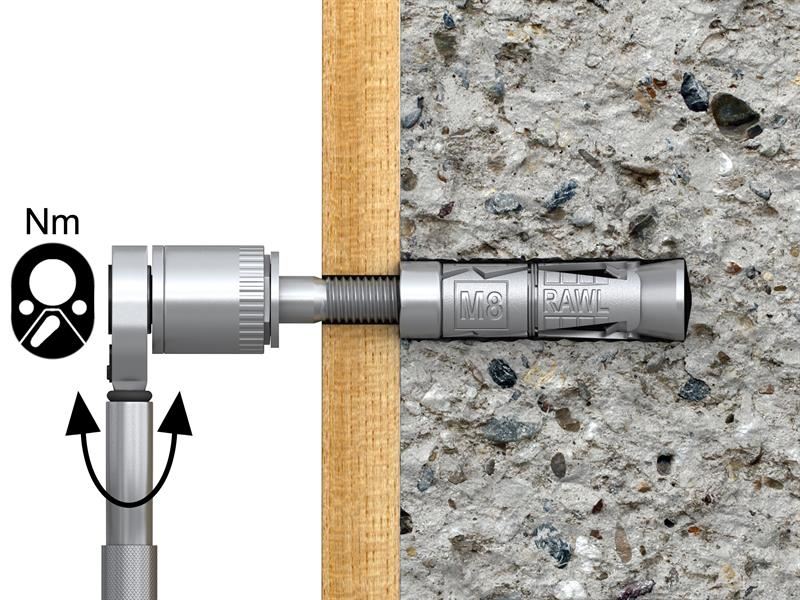

- Installation Torque: 27Nm
- Wrench Size: 17mm

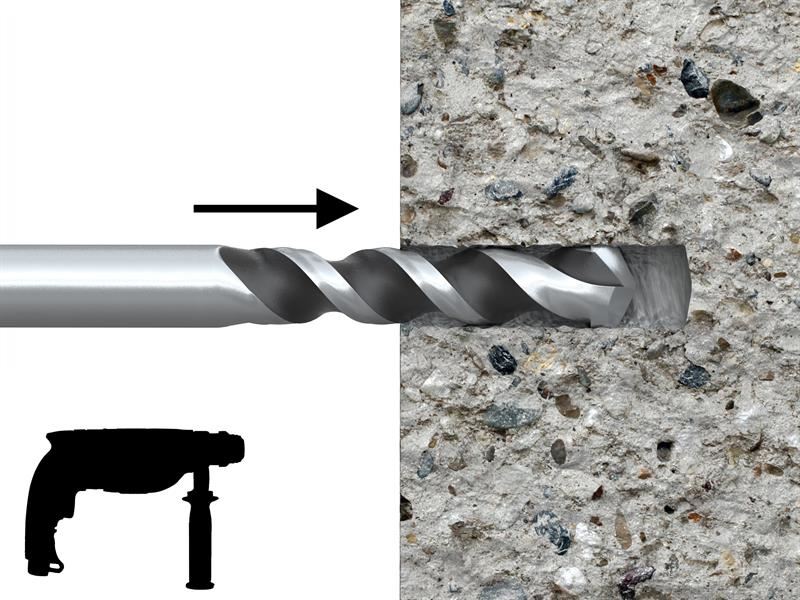

- Min. Hole Depth in Substrate: 65mm
- Min. Installation Depth: 60mm
- Min. Substrate Thickness: 100mm
- Min. Spacing: 50mm
- Min. Edge Distance: 75mm
- Pack Quantity: 5 per bag
Ideal for heavy-duty anchoring, the Rawlbolt® Loose Bolt ensures a secure and durable hold across a range of construction and engineering applications.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Cracked concrete
- Non-cracked concrete
- Hollowcore slabs
- Flooring blocks
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Material: High-strength steel
- Diameter: 10mm
- External Diameter: 16mm
- Length: 75mm
- Fixture Max. Thickness: 10mm
- Fixture Hole Diameter: 11mm
- Substrate Hole Diameter: 16mm
- Installation Torque: 27Nm
- Wrench Size: 17mm
- Min. Hole Depth in Substrate: 65mm
- Min. Installation Depth: 60mm
- Min. Substrate Thickness: 100mm
- Min. Spacing: 50mm
- Min. Edge Distance: 75mm
- Pack Quantity: 5
- Weight: 450g
Always follow local regulations and product guidance.
