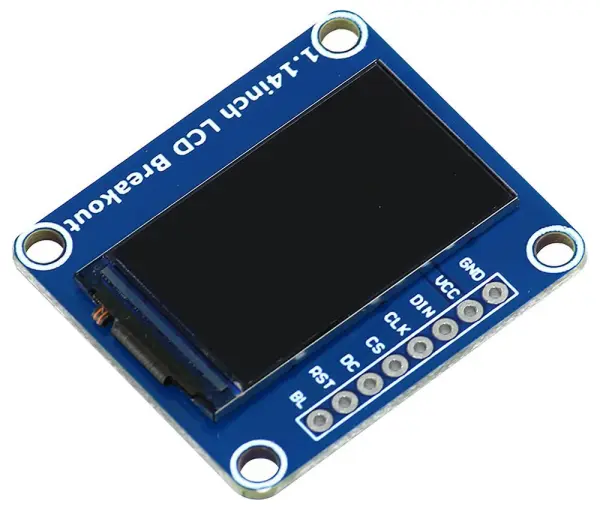

SB COMPONENTS 1.14-inch LCD IPS Display Breakout Board

The SB COMPONENTS 1.14-inch LCD IPS Display Breakout Board is a colourful and compact display module, perfect for adding a vibrant user interface or visual feedback system to your electronics project. This high-quality IPS panel delivers excellent viewing angles and vivid 65K RGB colours at a sharp 240 x 135-pixel resolution, driven by the popular ST7789 controller.

Designed for maximum versatility, the breakout board supports both 3.3V and 5V logic levels, ensuring seamless compatibility with a vast range of popular microcontroller and single-board computer platforms. You can easily integrate it with Arduino, Raspberry Pi, Raspberry Pi Pico, and many other development boards. Communication is handled via a fast and efficient SPI interface, simplifying programming and freeing up valuable I/O pins on your main processor.

For convenient integration, the module is supplied with an 8-pin male header strip, ready for you to solder directly onto the board, allowing for secure connection to breadboards or custom PCBs. Its compact footprint makes it ideal for space-constrained applications, from handheld gadgets and portable instruments to custom dashboards and status displays.

Key Features & Specifications:

• Display Type: High-quality IPS (In-Plane Switching) LCD
• Screen Size: 1.14 inches (diagonal)
• Resolution: 240 x 135 pixels
• Colour Depth: 65K RGB colours
• Display Driver: ST7789
• Interface: SPI (Serial Peripheral Interface)
• Operating Voltage: 3.3V or 5V (dual-supply compatible)
• Included: 8-pin male header strip for soldering
• Board Dimensions: 35mm (Height) x 32mm (Width)
• Package Dimensions: 43mm (H) x 33mm (W) x 15mm (D)
• Weight: 10 grams
