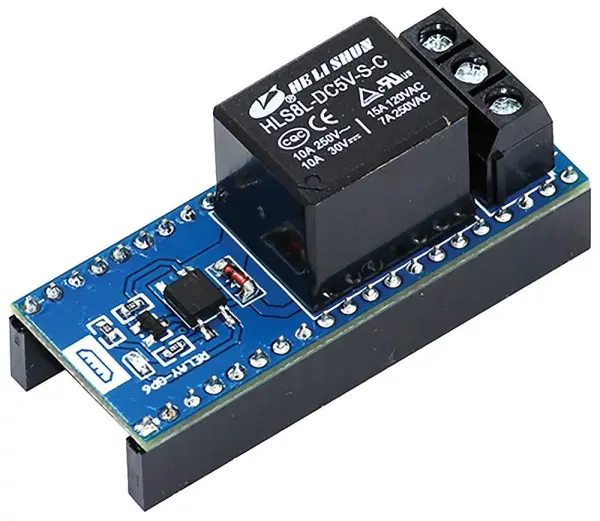

SB Components Pico Single Channel Relay HAT for Raspberry Pi Pico

The SB Components Pico Single Channel Relay HAT is a compact expansion board designed for the Raspberry Pi Pico, providing a high-quality single-channel relay for controlling external devices. Operating at 5V, this relay HAT supports loads up to 7A/250V AC and 10A/30V DC, making it suitable for a wide range of switching applications.

The HAT features a stackable 40-pin design for direct connection to the Raspberry Pi Pico, ensuring a secure and straightforward installation. Its optoisolated design helps protect the Pico from voltage spikes, while the integrated power LED provides clear status indication. The board is ideal for home automation, IoT projects, and educational purposes, enabling you to switch high-power devices such as lights, fans, and appliances safely.

Key Features

• Single channel relay supporting up to 7A/250V AC and 10A/30V DC
• 5V operating voltage, compatible with the Raspberry Pi Pico
• Stackable 40-pin design for direct connection
• Optoisolated design for enhanced protection
• Integrated power LED for status indication
• Compact dimensions: 36.5mm x 26mm x 13.5mm, weight 31g

Note: The Raspberry Pi Pico is not included and is shown for illustration only. For direct connection, the Pico must have male headers soldered (pins pointing down). The kit contains the relay board only.
