SPARKFUN Ultrasonic Distance Sensor, 2-400cm Range, I2C Qwiic
High-precision ultrasonic distance sensor (2-400cm range) with Qwiic I2C connectivity, ideal for robotics & automation.

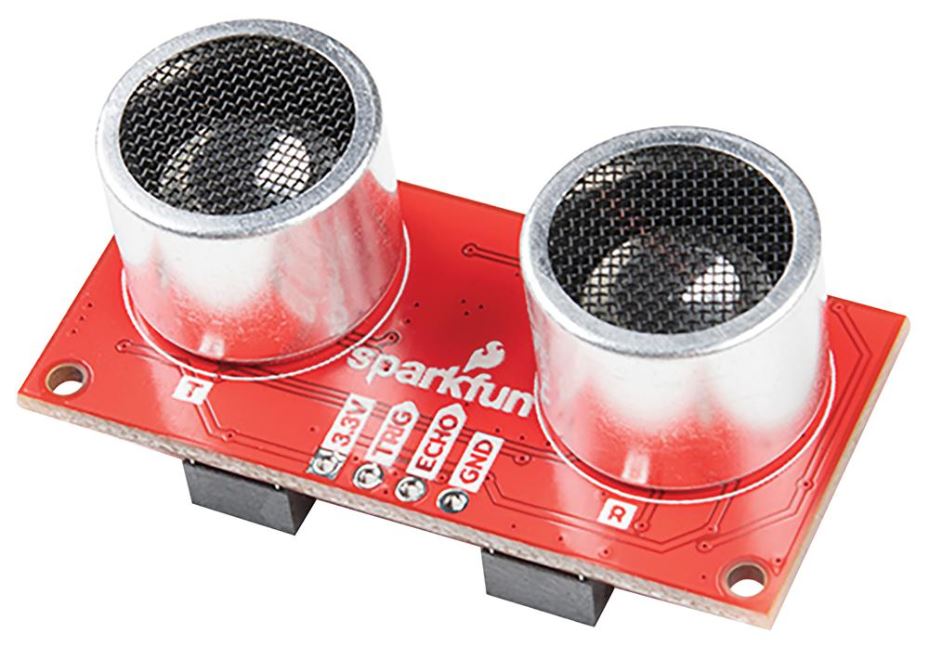

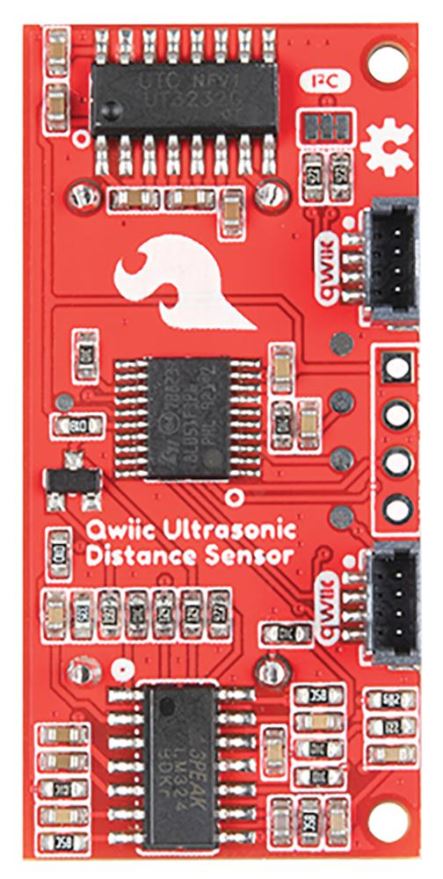

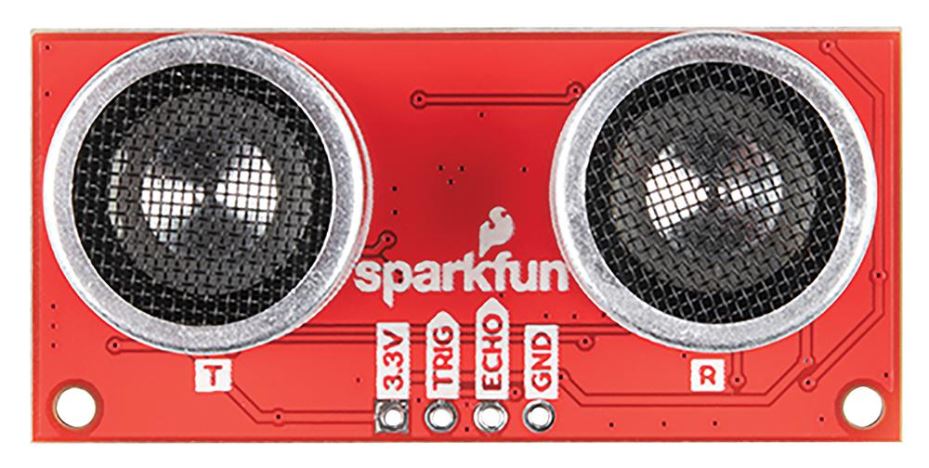

The SPARKFUN Ultrasonic Distance Sensor is a high-performance breakout board designed for precise non-contact distance measurement ranging from 2cm to 400cm. Built around the STM8L051 MCU, this sensor ensures reliable and accurate readings with a 15° detection angle and an impressive 3mm accuracy.
Equipped with Qwiic connectors, this breakout board simplifies I2C communication and allows seamless daisy-chaining with other Qwiic-enabled devices, making it ideal for prototyping and integration into larger systems. The sensor operates at a low 3.3V, ensuring energy efficiency.
Key Features
- Detection Range: 2cm to 400cm
- Detection Angle: 15°
- Accuracy: ±3mm
- Operating Voltage: 3.3V
- Communication Protocol: I2C (with default address 0x00)
- Installation: Versatile mounting with dual Qwiic connectors and breakout pins
Note: The sensor is supplied uncalibrated, allowing users to tailor it to specific project requirements. Whether for robotics, automation, or proximity sensing, this ultrasonic distance sensor delivers performance and flexibility for a wide range of applications.
- Detection Range: 2cm to 400cm
- Detection Angle: 15°
- Accuracy: ±3mm
- Operating Voltage: 3.3V
- Communication: I2C (Default Address: 0x00)
- Features: Dual Qwiic Connectors, Breakout Pins
- MCU: STM8L051
- Weight: 20g
- Calibration: Supplied uncalibrated
