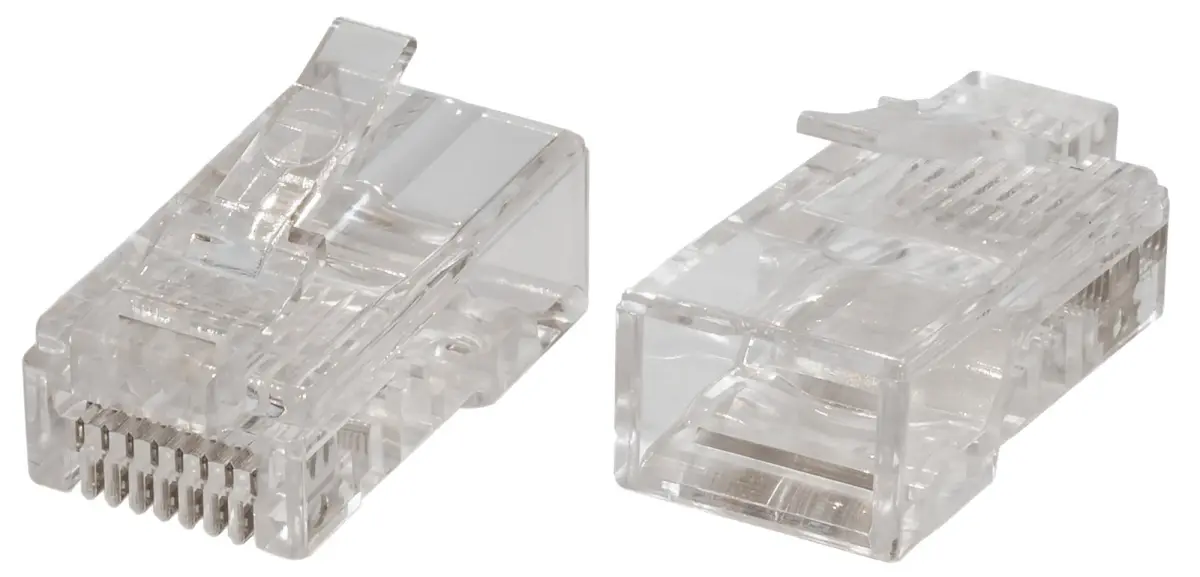

Speedy RJ45 Cat5e Contractor Grade Feed-Through Modular Plugs

The Speedy RJ45 Cat5e Contractor Grade Feed-Through Modular Plug is a professional-grade RJ45 connector for terminating unshielded twisted pair Cat5e cabling. Its feed-through design allows the wires to be inserted through the rear of the plug and pulled out of the front, so the colour sequence and pairing can be checked before crimping.

Key Features

• Feed-through design with an unobstructed front view for verifying colour sequence and pairing
• Robust one-piece construction
• Three-prong pin contact that grips both solid and stranded conductor cores
• Gas-tight connection
• Designed for 23–26 AWG wires with an insulation outer diameter of 0.93 mm to 1.04 mm
• Designed for cables with an overall sheath diameter of 5.0 mm to 6.0 mm
• Unshielded, straight orientation design
• Works with standard RJ45 crimping tools

Overview

The feed-through design keeps the twist of each pair intact up to the contacts. Preserving the twist is important for minimising crosstalk and maintaining signal integrity, which supports a network link that meets or exceeds Cat5e specifications. The plugs are suited to IT professionals, network engineers and data installers who need efficient, reliable terminations.

Applications

Suitable for custom-length patch cords, terminating in-wall runs, and infrastructure projects in data centres, offices and commercial buildings.

Dimensions and Weight

Width: 2.2, Depth: 0.2, Height: 3.3. Weight: 600 gm. Choose the Speedy RJ45 Cat5e feed-through modular plugs when you need a straightforward RJ45 termination solution for standard Cat5e cabling.
