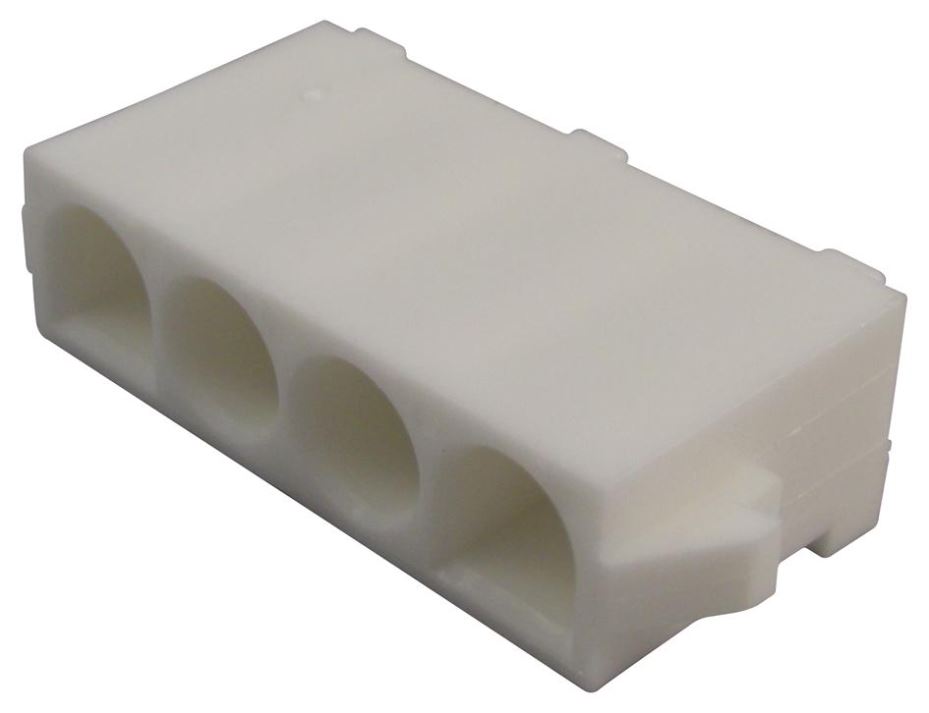

TE Connectivity 350792-1 Mate-N-Lok Pin Header, 4 Way, 6.35mm Pitch
TE Connectivity 4-way, 6.35mm pitch pin header for industrial PCB applications. Rated 15A/600V, -55°C to 105°C.
The TE Connectivity 350792-1 Mate-N-Lok Pin Header is a high-performance PCB connector designed for reliable industrial applications. This vertical single-row header assembly features a 6.35mm pitch and accommodates 4 positions, making it a versatile solution for wire-to-board connections. Its white nylon GF housing ensures durability and electrical insulation, while the phosphor bronze contacts with tin plating provide excellent conductivity and corrosion resistance.
Key Features:
- High Current Rating: Supports up to 15A, ideal for power-intensive applications.
- Wide Voltage Range: Operates at 600V AC, suitable for industrial use.
- Temperature Resistance: Performs reliably from -55°C to 105°C, ensuring stability in harsh environments.
- Secure Locking: Available with a positive lock mechanism for stable connections.
Applications:
This header is widely used in industrial and automation systems requiring secure wire-to-board connections. Its shrouded design prevents misalignment, while the robust material construction guarantees long-term performance in demanding conditions.
Technical Specifications:
- Connector System: Wire-to-Board
- Pitch Spacing: 6.35mm
- Number of Rows: 1
- Number of Contacts: 4
- Contact Termination: Through Hole (Straight)
- Shroud Type: Shrouded
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Industrial automation systems
- PCB wire-to-board connections
- Power distribution units
- Control panels
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Colour: White nylon GF housing
- Current Rating: 15A
- Operating Voltage: 600V AC
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated
- Operating Temperature: -55°C to 105°C
- Locking Mechanism: Positive Lock (Optional)
- Connector System: Wire-to-Board
- Pitch Spacing: 6.35mm
- No. of Rows: 1
- No. of Contacts: 4
- Contact Termination: Through Hole (Straight)
- Product Range: Universal MATE-N-LOK
- Shroud Type: Shrouded
- Weight: 900g
