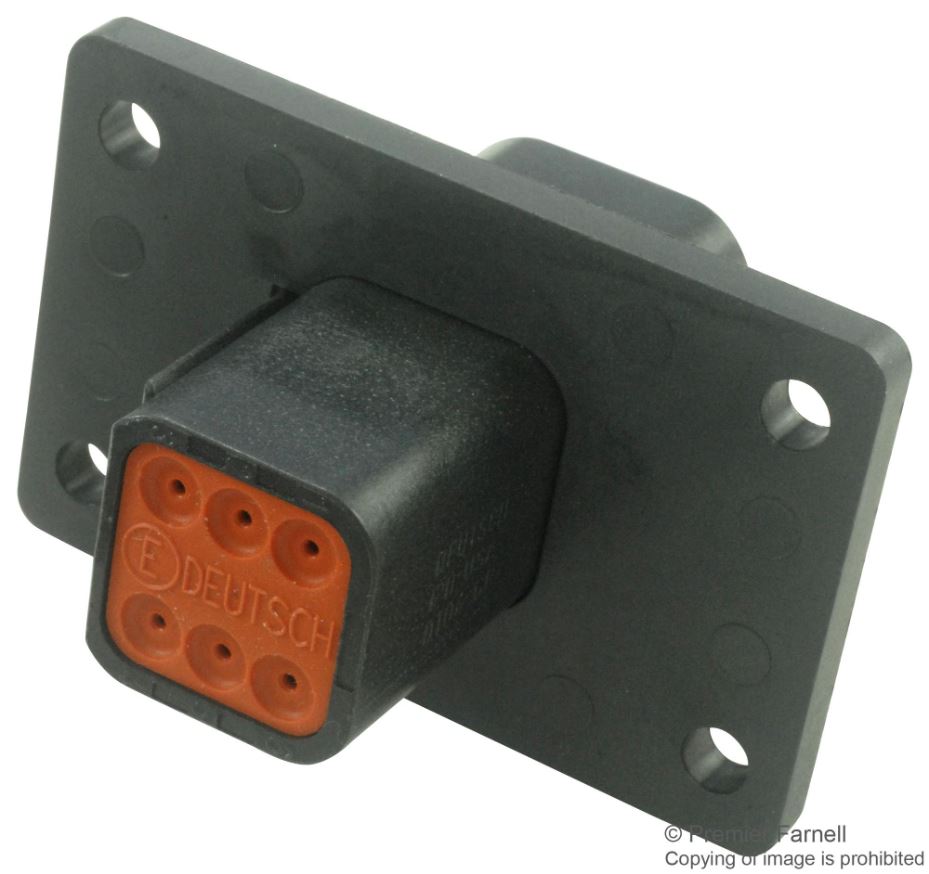

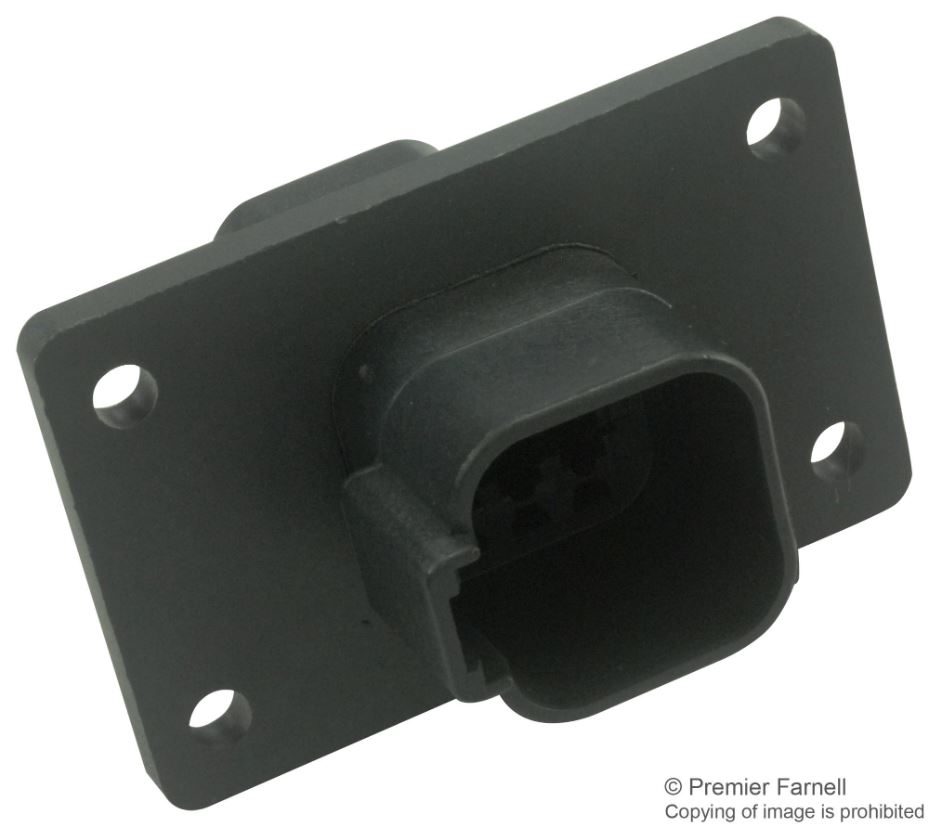

TE Connectivity DT Series Flange Mount Receptacle, 6-Way, Black
IP68-rated 6-way flange mount receptacle by TE Connectivity for automotive & industrial applications. Thermoplastic housing, 250V/13A rating.
The TE Connectivity DT Series Flange Mount Receptacle (DT046P-CL06) is a high-quality, 6-way sealed connector housing designed for reliable performance in demanding environments. Featuring a rugged thermoplastic construction and black seals, this flange-mounted receptacle ensures excellent protection against environmental factors.
Key Features
- Rectangular thermoplastic housing for durability
- Integrated latch for secure mating
- Wedgelocks ensure proper contact alignment and retention
- Sealed design with black seals for environmental protection
- Available in various cavity arrangements (3, 4, 6, 8, 12)
- Compatible with thin-wall wire (1.35 - 3.05mm insulation diameter)
Applications
Ideal for use in agriculture, automotive systems, and industrial applications where reliable electrical connections are essential. The IP68-rated housing provides robust protection against dust and water ingress, making it suitable for harsh conditions.
Additional Specifications
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 250V
- Current Rating: 13A
- Requires secondary contact lock for secure attachment
- Flange mount available in receptacle form only
- Agriculture applications
- Automotive systems
- Industrial electrical connections
- Product Range: DT
- Gender: Receptacle
- No. of Positions: 6 Ways
- For Use With: DT Series Pin Contacts
- Connector Body Material: Thermoplastic
- IP Rating: IP68
- Voltage Rating: 250V
- Current Rating: 13A
- Operating Temperature: -55°C to +125°C
- Wire Compatibility: Thin Wall (1.35 - 3.05mm insulation diameter)
- Weight: 20g (approximately)
