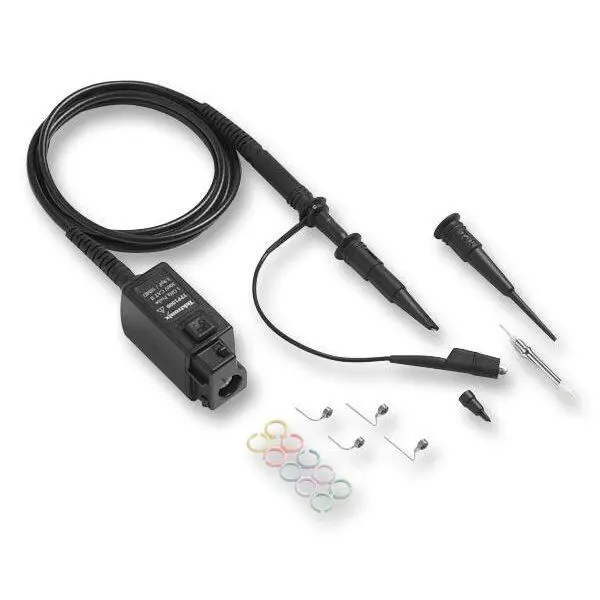

TEKTRONIX 10:1 Oscilloscope Probe - 100MHz

The TEKTRONIX 10:1 Oscilloscope Probe is a high-quality passive voltage probe designed for use with BNC oscilloscopes featuring 1 MΩ, 20 pF inputs. Engineered for precision and reliability, this probe is an essential accessory for professionals and electronics enthusiasts who require accurate signal measurements across a variety of low-frequency applications.

Featuring a 10:1 attenuation ratio, the probe ensures minimal circuit loading while providing accurate readings. It boasts a fast rise time of less than 2.3 ns, allowing for detailed signal analysis. The generous 1.3-metre cable length offers flexibility and ease of use in busy workspaces, ensuring you can comfortably connect your oscilloscope to the circuit under test.

Typical Applications

This versatile oscilloscope probe is ideally suited for a range of testing environments. It excels in relative low-frequency measurements, making it a valuable tool for evaluating low-frequency computer and telecommunications equipment. Additionally, it is highly effective for testing power supplies and low-frequency amplifiers, ensuring your electronic systems are functioning correctly.

Safety and Compliance

Safety is paramount when working with electrical equipment. This probe supports a maximum input voltage of 300V and meets rigorous international safety standards, including UL61010-031:2007, CAN/CSA C22.2 No. 61010-031-07, and IEC61010-031/A1:2008, providing peace of mind during operation.

Key Specifications

• Function: Passive voltage probe
• Attenuation: 10:1
• Input Voltage Max: 300V
• Cable Length: 1.3m
• Rise Time: Less than 2.3ns (typical)
• Compatibility: Tektronix 1 MΩ, 20 pF input BNC oscilloscopes

Variant Details

• Size: 100MHz
