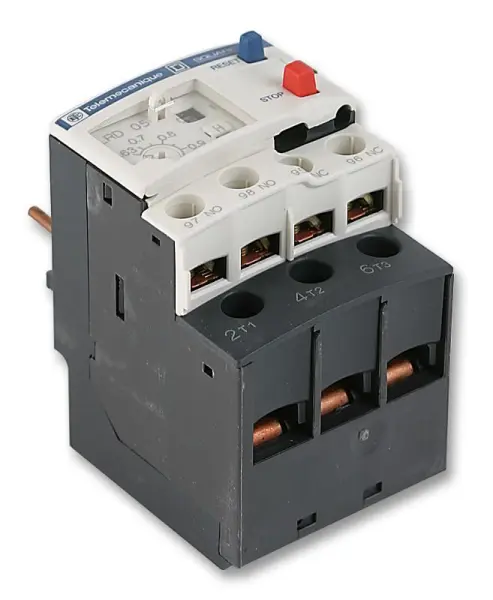

Telemecanique LRD Overload Relay, 16-24A, 1 NO + 1 NC

The Telemecanique LRD Overload Relay is a robust thermal overload relay designed for reliable motor protection. It offers a current adjustment range of 16A to 24A, making it suitable for a variety of industrial motor applications within this range.

This relay features a sealable cover to prevent tampering and accidental changes to settings, ensuring consistent protection. It provides both manual and automatic reset options for operational flexibility and incorporates 1 normally open (NO) + 1 normally closed (NC) auxiliary contacts for integration into control circuits. A local trip indication clearly shows when the relay has operated, aiding quick diagnostics and reducing downtime.

Engineered for durability and precision, this overload relay is part of the trusted LRD series from Telemecanique, known for quality and performance in industrial environments.

Key Features

• Adjustable overload current from 16A to 24A
• Sealable cover for security
• Manual or automatic reset
• 1 NO + 1 NC auxiliary contacts
• Clear local trip indication

Specifications

• Current Adjustment: 16A – 24A
• Auxiliary Contacts: 1 NO + 1 NC
• Reset Mode: Manual/Auto
• Product Range: LRD
• Weight: 140g
• Dimensions: H 43mm × W 33mm × D 15mm
