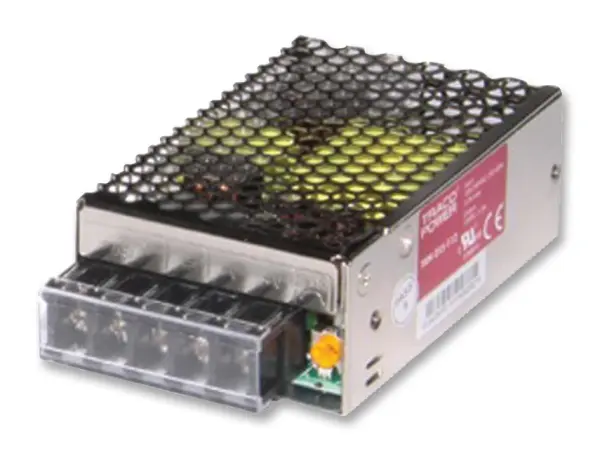

TRACO POWER TXL Series AC/DC Enclosed Power Supply - 12V 1.3A 15W

The TRACO POWER TXL Series provides a robust, reliable AC/DC enclosed power supply solution, engineered for a wide range of low-cost applications in industrial and IT equipment. This series is housed in a low-profile metal case, offering durability and effective heat dissipation while ensuring user safety with its enclosed design. Connection is straightforward via a screw terminal block, facilitating quick and secure installation in any equipment or control cabinet.

These power supplies are designed with universal input, accepting a wide voltage range from 85V AC to 264V AC at 47Hz to 63Hz, making them suitable for global use without the need for manual voltage selection. They deliver high efficiency, up to 84%, which helps to minimise energy loss and heat generation during operation. The series incorporates comprehensive protection features, including short circuit and overvoltage protection, safeguarding both the power supply and the connected load from damage.

Compliant with key European and international standards, the TXL Series meets EMC requirements (EN 61000-6-3 and EN 61000-6-1) and the Low Voltage Directive (LVD). They are also approved to UL 60950-1, IEC/EN 60950-1, UL/cUL, and CB standards, ensuring safety and reliability for professional use. The operating temperature range spans from -20°C to 70°C, providing dependable performance in challenging environmental conditions. With a high switching frequency of 50KHz and a design focused on long-term reliability, these units are built for continuous operation in demanding settings.

Variant Details

• Size: 12V 1.3A 15W
