Trend Kitchen Worktop Jig for 900mm Worktops

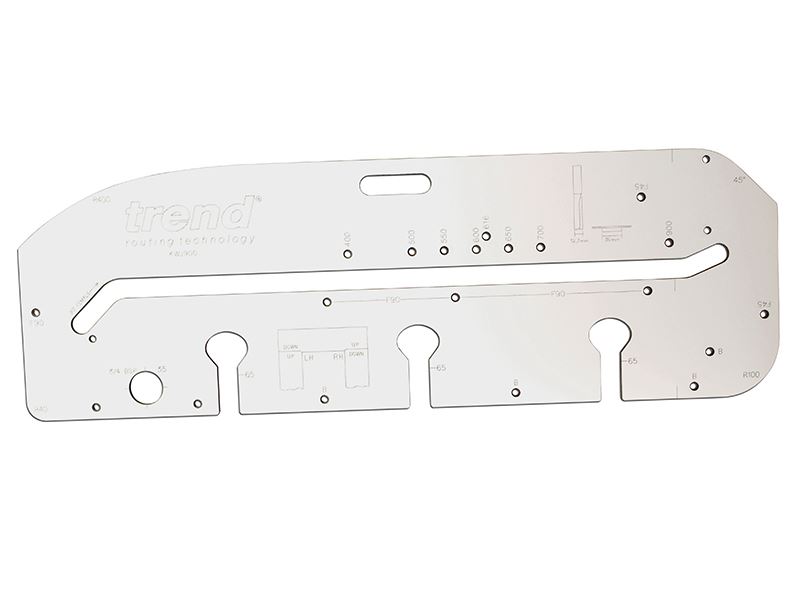

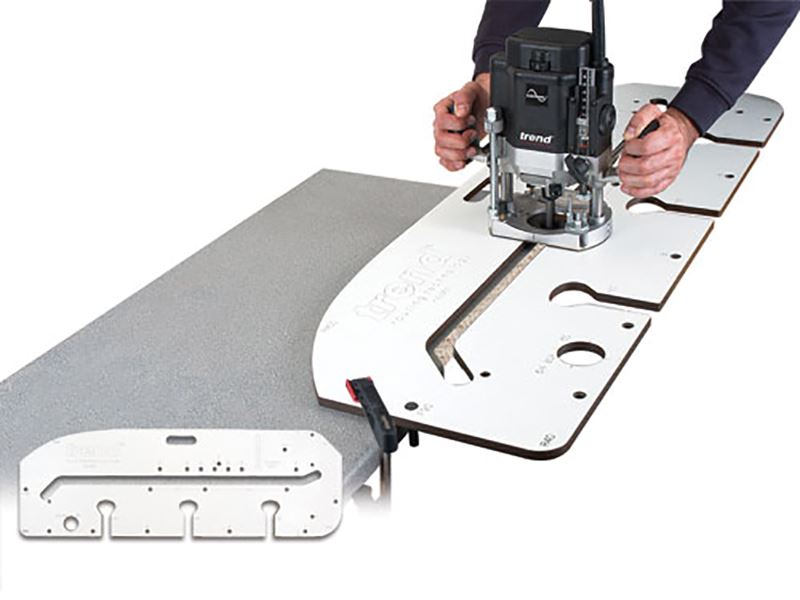

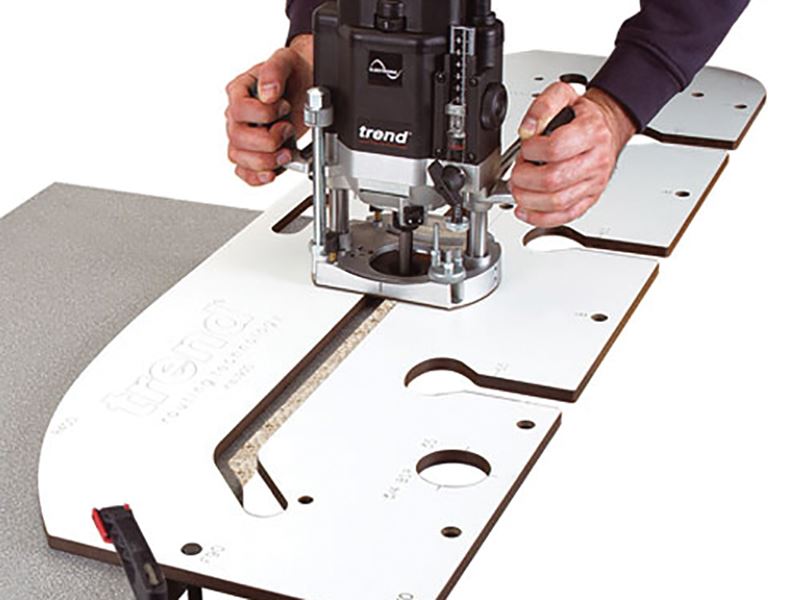

The Trend Kitchen Worktop Jig 900mm is a professional-grade tool designed for precision cutting and jointing of kitchen worktops. Made from hard-wearing solid laminate (12mm thick), this jig enables you to cut both parts of a joint in just 15 minutes, including setup time.

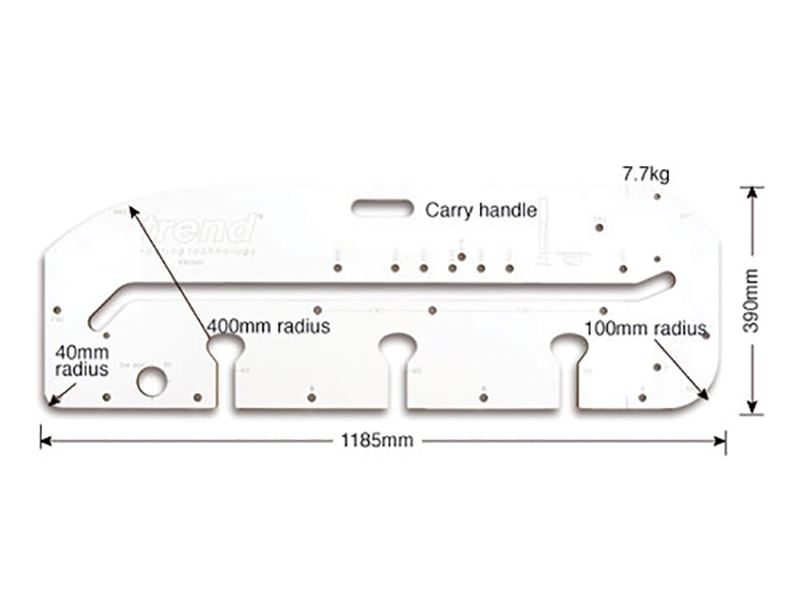

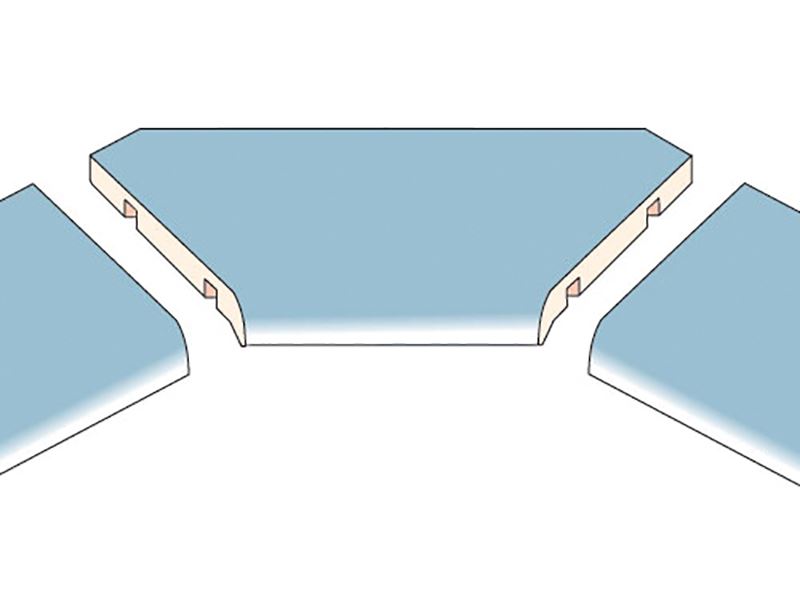

Features include: * Left and right-hand corner options. * 400mm radius peninsular joint. * 45-degree end cut with a slight radius. * 45-degree trade corner. * 40mm and 100mm radius corners. * 35mm kitchen door hole. * 3/4-inch BSP hole for mixer taps.

The jig comes with 6 x 10mm ABS plastic pins featuring tapered shoulders for a secure fit and three-point pin contact, ensuring quick and accurate setup. It is compatible with fixed-length worktops (400mm, 500mm, 550mm, 600mm, 616mm, 650mm, 700mm, and 900mm) and can cut worktops up to 40mm thick, even with anti-drip postformed edges.

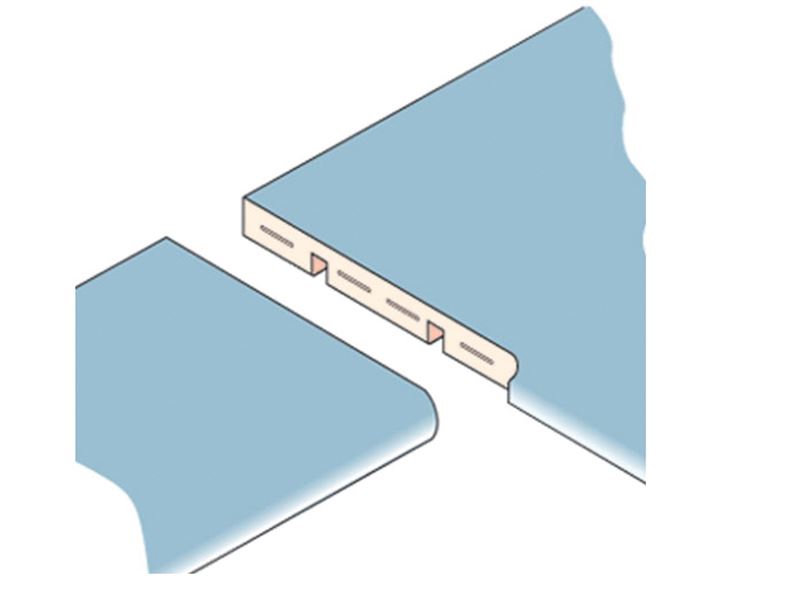

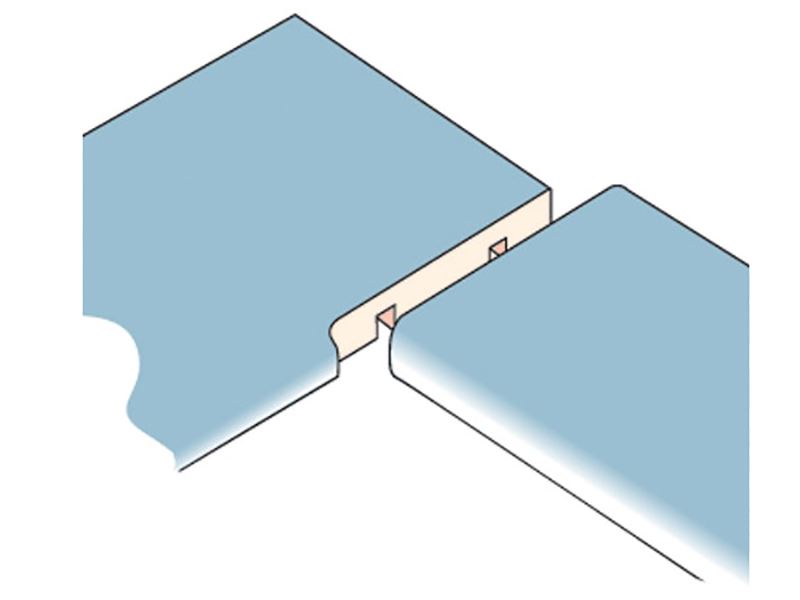

Additional design elements: * Three open-ended bolt recesses (dog bone style) for 150mm bolts. * Engraved lines for 65mm bolts and worktop cross-cuts. * Engraved markings for easy identification of pin holes.

This all-in-one tradesman’s jig simplifies worktop installation, offering versatility and efficiency for kitchen fitting projects.
