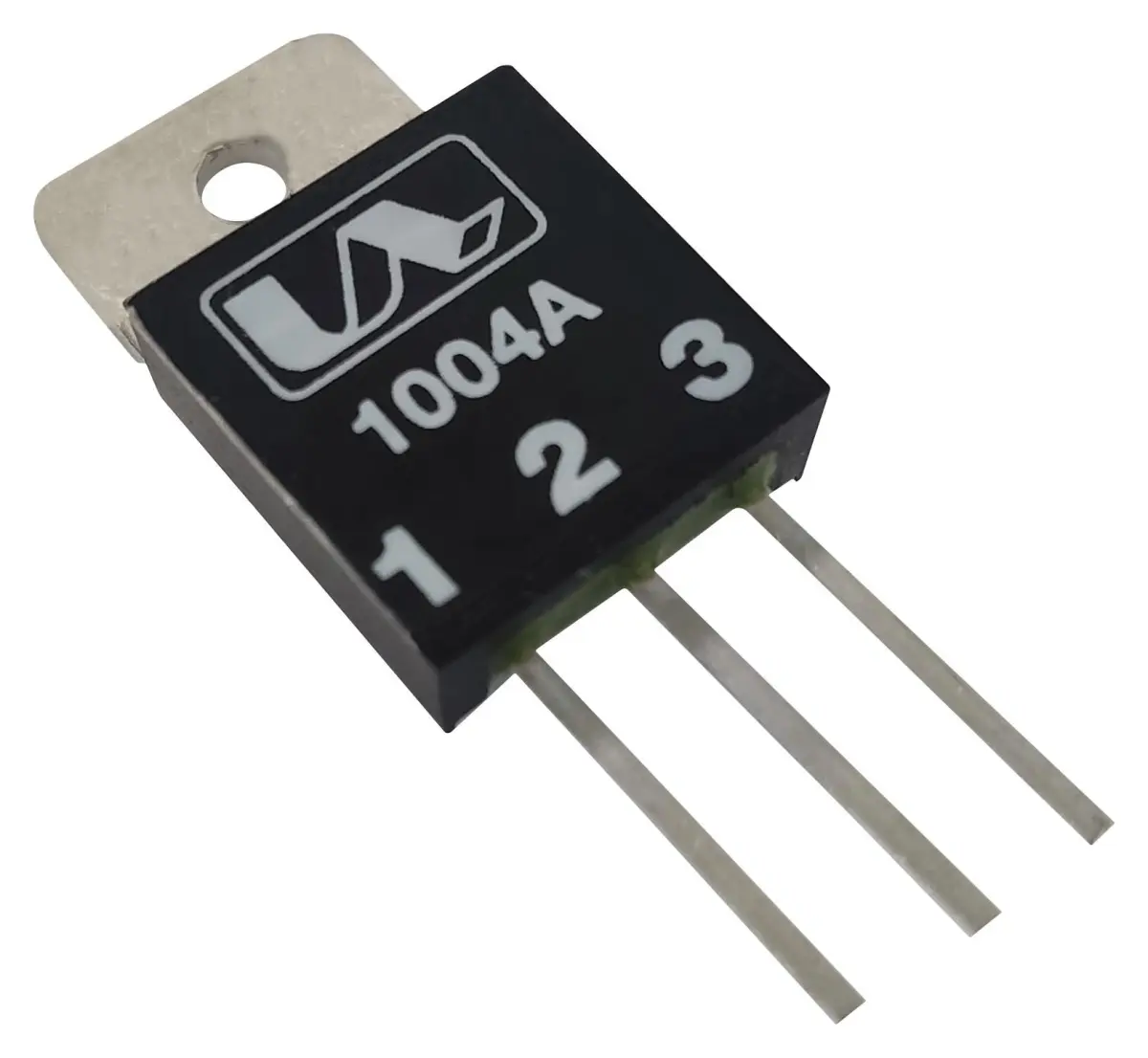

UNITED AUTOMATION - IC, Power Regulator - 10A

The UNITED AUTOMATION CSR Series IC Power Regulator is a sophisticated semiconductor component designed for precise control of single-phase mains-powered loads. This integrated circuit chip enables fully adjustable output from zero to maximum voltage when used in conjunction with a variable resistance potentiometer, offering superior command over power delivery for a wide range of applications.

Engineered for reliability, the regulator is ideally suited for controlling conventional resistive heating elements, making it a cornerstone for thermal management systems. Its design prioritises flexibility and ease of integration, featuring low hysteresis levels for stable performance and straightforward installation procedures. The component boasts robust insulation capabilities, withstanding 1500V for one minute, ensuring safety and durability in demanding electrical environments.

Key Features & Applications

• Versatile Load Control: Capable of managing loads up to 15A, providing broad applicability.
• Precise Adjustment: Delivers smooth, fully variable output control via an external potentiometer.
• Robust Construction: Features high insulation withstand voltage for enhanced safety and longevity.
• Thermal Management: Perfectly suited for dimming and speed regulation in heating systems.
• Motor Drive Control: Can be implemented in circuits for controlling motor speed.
• Lighting Control: Applicable for dimming circuits in lighting installations.

For optimal protection, it is recommended to use semiconductor (fast-acting) type fuses or circuit breakers in series with the unit. This ensures the component is safeguarded against electrical faults, maintaining system integrity.

Housed in a compact package, this power regulator chip is a reliable and efficient solution for engineers and technicians looking to add variable power control to 230V AC systems,

Variant Details

• Size: 10A
