Whadda UK Oscilloscope Tutor Board
Learn to master your oscilloscope with the Whadda UK Tutor Board. Features 8 experiments & various real-world signals. Assembled & ready to use.

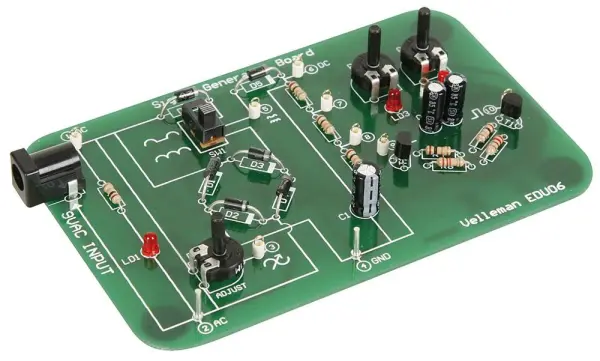

The Whadda UK Oscilloscope Tutor Board is an educational tool designed to help you get the most out of your oscilloscope. It generates several 'real-world' signals, allowing you to perform basic measurements and familiarise yourself with different technical terms and measurement techniques through hands-on experimentation.
An included user guide covers 8 detailed experiments that can be performed with any digital oscilloscope, making it an ideal learning platform for beginners and electronics enthusiasts alike. The board requires no soldering, as it is supplied fully assembled and tested, so you can start experimenting straight away.
Generated Signals
The tutor board produces a variety of signals to measure and analyse:
- AC
- Adjustable AC
- Full/Half Wave Rectified AC
- DC
- Ripple
- Astable Oscillator
Power and Dimensions
The board is powered by a 9-12V AC adaptor (please note that the PSU is not included). Its compact size ensures it fits comfortably on any workbench, with product dimensions of 24 x 116 x 74mm. Whether you are a student, hobbyist, or professional looking to refresh your skills, this tutor board provides a practical and interactive way to master oscilloscope operations.
