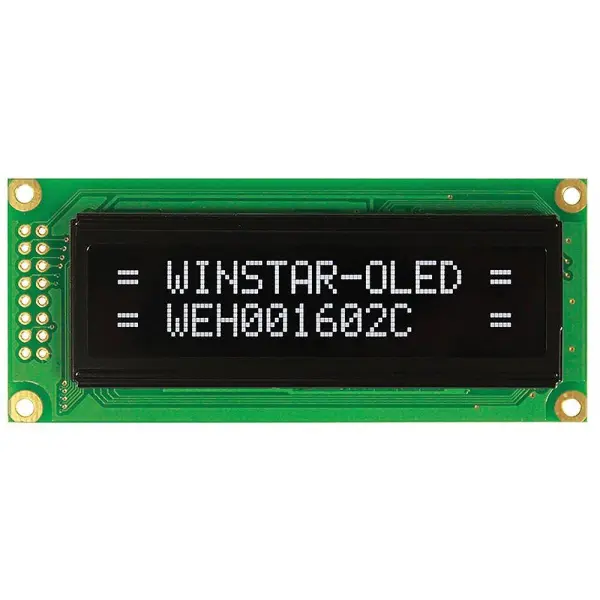

WINSTAR 16x2 OLED Display Module, White on Black, 85x36mm

The WINSTAR 16x2 OLED Display Module delivers crisp, clear characters in a white-on-black format, offering a high-contrast viewing experience for a wide range of applications. This compact module features a 16-character by 2-line layout with a 66 x 16mm view area, making it ideal for control panels, instrumentation, and embedded systems that require a reliable, easy-to-read display.

Designed for durability and performance, this OLED module operates over a broad temperature range from -40°C to 80°C, ensuring dependable operation in demanding environments. The COB (Chip-On-Board) construction enhances reliability and simplifies integration into your projects, while the 6800 interface enables straightforward connection to a variety of microcontrollers and development boards.

Key Features

• High-contrast white-on-black OLED display
• Wide operating temperature range for versatile use
• Compact module size: 85mm x 36mm x 10mm
• 5V logic voltage for easy integration
• Built-in WS0010-TX controller IC, simplifying command and data handling

Technical Specifications

• Character size: 2.95mm x 2.55mm
• Active area: 56.95mm x 11.85mm
• Dot size: 0.55mm x 0.65mm
• Dot pitch: 0.60mm x 0.70mm
• Character pitch: 3.6mm x 6.3mm
• Duty: 1/16

This display module is a reliable choice for engineers and hobbyists alike, offering clear visibility and robust performance in a form factor that fits neatly into most enclosures.
