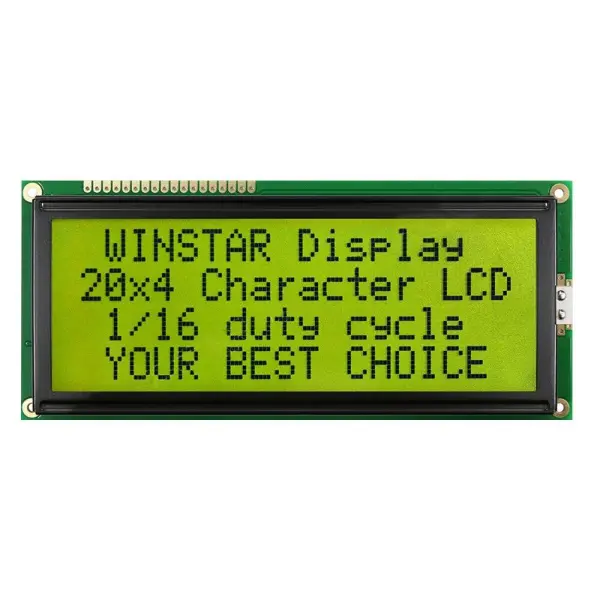

Winstar LCD Display Module, Yellow / Green, STN, Positive, Transflective - Green Yellow 20x4
- SKU
- C3-SC15000
- EAN
- 3562074182428
Winstar 16x4 character LCD module with ST7066 controller, yellow/green backlight. Ideal for embedded systems, industrial controls & electronics projects.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Embedded system interfaces
- DIY electronics and hobbyist projects
- Instrumentation and measurement devices
- Prototyping and development boards
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Display Format: 20 characters x 4 lines
- Character Matrix: 5x8 dots (includes cursor)
- Controller: Built-in ST7066U
- Default Interface: 6800 4/8-bit parallel
- Logic Voltage: 3V to 5V
- Power Feature: Negative voltage optional for +3V single supply
- Duty Cycle: 1/16
- Module Dimensions: 146mm x 62.5mm x 13.6mm
- View Area: 123.5mm x 43mm
- Active Area: 118.8mm x 38.47mm
- Dot Size: 0.92mm x 1.1mm
- Dot Pitch: 0.98mm x 1.16mm
- Character Size: 4.84mm x 9.22mm
- Character Pitch: 6.0mm x 9.75mm
- LCD Type: STN, Positive, Transflective
- Viewing Direction: 6 O'Clock
- Font Set: English, Euro, Japanese
- Display Mode: Transflective
- Backlighting Colour: Yellow/Green LED
- Operating Temperature: -20ยฐC to +70ยฐC
- Display Construction: Module
- Weight: 128 grams
- LCD Display Type: Character
- Operating Temperature Min: -20ยฐC
- Operating Temperature Max: 70ยฐC
- SVHC: No SVHC (17-Dec-2014)
