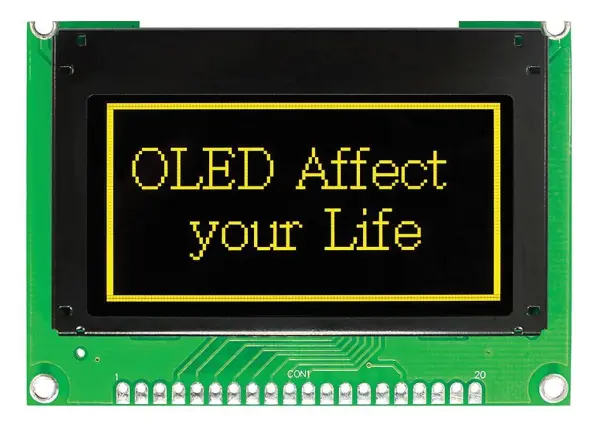

WINSTAR Monochrome Yellow OLED Display Module 128x64

The WINSTAR Monochrome Yellow OLED Display Module is a high-quality, compact screen designed for embedded applications requiring a clear, energy-efficient readout. This passive matrix OLED offers a sharp 128x64 pixel resolution, presenting information in a distinctive yellow-on-black format for excellent contrast and visibility even in low-light conditions. With its Chip-on-Glass (COG) construction, the module is robust and reliable for demanding environments.

Engineered for versatility, it operates on a low 3V driver and logic voltage, making it ideal for battery-powered or portable devices. The module features a generous active viewing area of 55.01 x 27.49 mm, with a fine pixel pitch for detailed graphics or character display. Its wide operating temperature range from -40°C to 80°C ensures consistent performance in industrial, automotive, or outdoor settings.

Key Features & Specifications

• Display Type: Passive Matrix OLED (Organic Light-Emitting Diode)
• Resolution: 128 x 64 dot matrix
• Colour: Monochrome Yellow on Black background
• Viewing Area: 55.01 mm x 27.49 mm
• Pixel Size: 0.40 mm x 0.40 mm
• Pixel Pitch: 0.43 mm x 0.43 mm
• Drive Duty: 1/64
• Construction: Chip-on-Glass (COG)
• Operating Voltage: 3V (Driver & Logic)
• Module Dimensions: 75 mm x 52.7 mm x 8.5 mm
• Operating Temperature: -40°C to +80°C

This display module is a perfect solution for developers and engineers creating user interfaces for instrumentation, medical devices, handheld tools, or any project where space, power consumption, and readability are critical.
