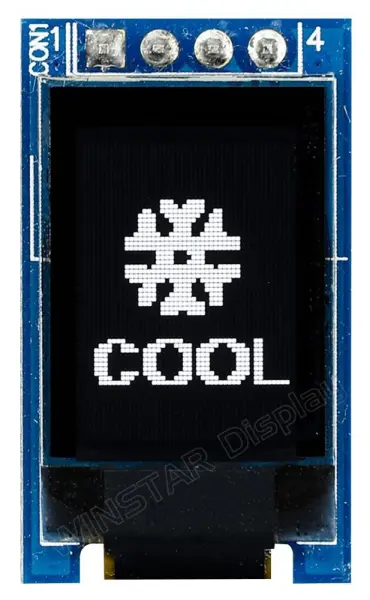

WINSTAR OLED Graphic Display Module, 3V, Passive Matrix - White 48 x 64
- SKU
- C3-SC15653
- EAN
- 3562084102584
Compact 48x64 pixel WINSTAR OLED display module with I2C interface. 3V logic, passive matrix, white on black, for embedded systems.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Portable and handheld electronic devices
- Embedded systems and microcontroller projects
- IoT (Internet of Things) sensors and nodes
- Industrial control panels and instrumentation
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Dot Matrix Resolution: 48 x 64 Dots
- Module Dimension: 15.9mm x 27mm x 2.36mm
- Active Display Area: 10.54mm x 14.70mm
- Pixel Size: 0.198mm x 0.208mm
- Pixel Pitch: 0.20mm x 0.20mm
- Display Colour: White
- Display Mode: Passive Matrix
- Drive Duty: 1/64 Duty
- Controller IC: SSD1306
- Display Appearance: White on Black
- Logic Voltage: 3V to 3.3V
- Interface Type: I2C
- Operating Temperature Range: -40°C to 80°C
- Display Construction: Chip-On-Glass (COG)
- Module Weight: 4 grams
- External Module Size: 33mm (W) x 43mm (H) x 15mm (D)
- IC: SSD1306
- Resolution: 48 x 64
- Module Size: 15.9mm x 27mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 80°C
- SVHC: No SVHC (17-Dec-2014)
