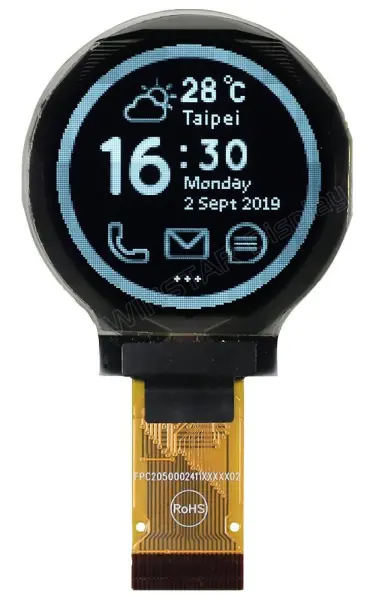

WINSTAR Passive Matrix White OLED Display Module - 128

The WINSTAR Passive Matrix White OLED Display Module delivers a crisp, high-contrast monochrome display ideal for a wide range of embedded electronics, instrumentation, and portable device applications. Featuring a compact, low-profile design, this module provides a bright white-on-black visual output that ensures excellent readability even in varied lighting conditions.

Its core technology is a passive matrix OLED (Organic Light-Emitting Diode) panel, known for its superior viewing angles, fast response times, and low power consumption compared to traditional LCDs. The display does not require a backlight, as each pixel emits its own light, resulting in deeper blacks and a high contrast ratio. The module utilises a COG (Chip-On-Glass) construction, which integrates the driver IC directly onto the glass substrate, contributing to its slim form factor and enhanced reliability.

Engineered for robust performance, the module operates across an extensive temperature range, making it suitable for both industrial and commercial environments. It is designed with a simple parallel interface for straightforward integration into microcontroller-based systems, supporting a standard logic voltage. The precise dot matrix and pixel structure ensure sharp character and graphic rendering, perfect for displaying status information, user interfaces, or simple graphics.

Key Specifications & Features

• Display Technology: Passive Matrix OLED (PMOLED)
• Display Colour: Monochrome White
• Display Appearance: White on Black
• Resolution: 128 x 128 Dots (Pixels)
• Active Area: 30.0 mm x 30.0 mm
• Pixel Size: 0.21 mm x 0.21 mm
• Pixel Pitch: 0.235 mm x 0.235 mm
• Drive Duty: 1/128
• Driver IC: SSD1327ZB
• Construction: Chip-On-Glass (COG)
• Logic Supply Voltage: 3.0V to 3.3V
• Operating Temperature Range: -40°C to +

Variant Details

• Size: 128
