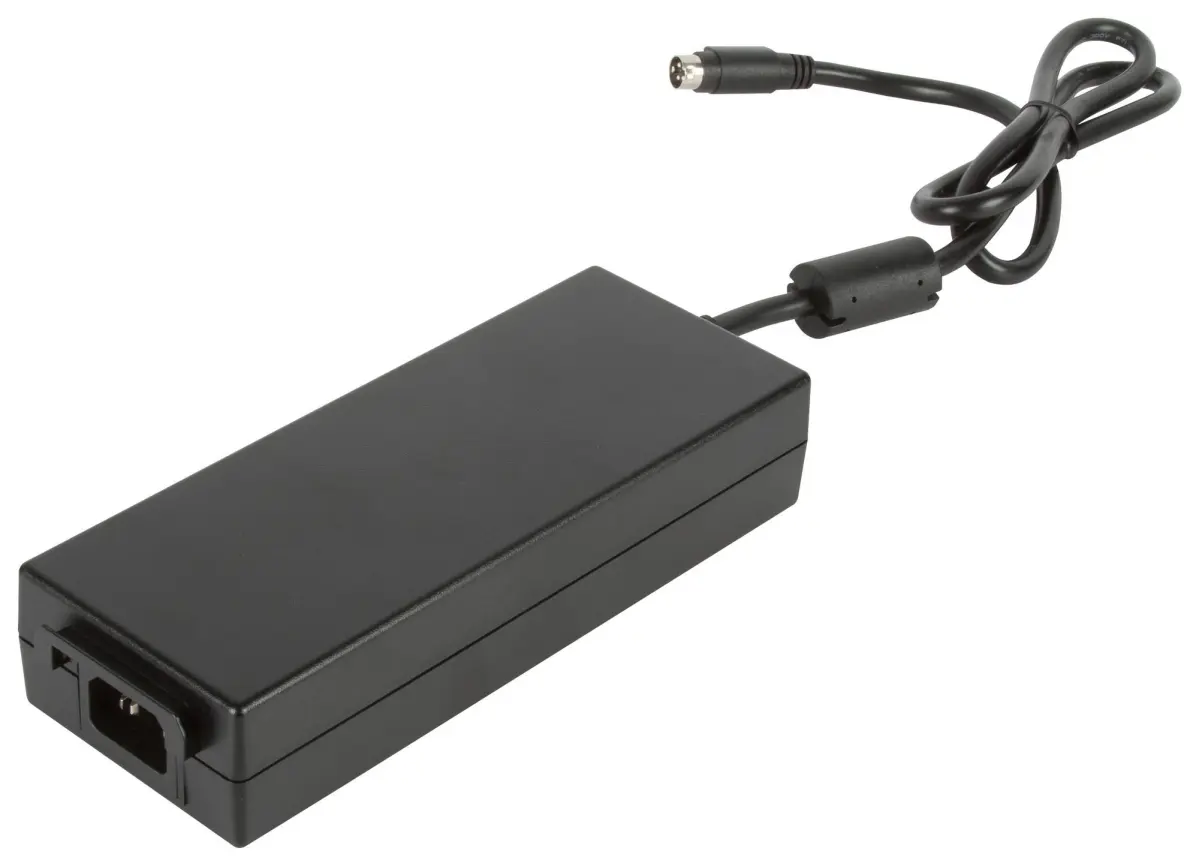

XP POWER - AC/DC Enclosed Power Supply, Medical Approved, 2.5mm Plug - 24V 6.2A 150W

The XP POWER ALM150 series represents a range of enclosed AC/DC power supplies, fully approved to international medical and IT safety standards. Designed for reliability and efficiency, these units meet the latest environmental legislation with very high efficiency and low standby power consumption.

Each power supply features a fully sealed enclosure complying with IP32, and a smooth surface finish that facilitates easy wiping in clinical settings. Energy efficiency level VI and EU CoC tier 2 compliant, these units consume less than 0.15W in standby mode, making them an excellent choice for energy-conscious applications.

Key Features

• Energy efficiency level VI and EU CoC tier 2 compliant
• Less than 0.15W standby power
• 0°C to 60°C operation
• Low earth leakage current
• Class II construction
• Fully sealed IP32 enclosure

Applications

These power supplies are ideally suited for medical and ITE (Information Technology Equipment) applications, where safety, efficiency, and reliability are paramount. The wide input voltage range of 80V AC to 264V AC ensures compatibility with various power sources, while the fixed output provides a stable and consistent power delivery.

The unit's compact dimensions of 186.0 x 72.0 x 38.0mm allow for flexible installation in space-constrained equipment, and the 4-way DIN output connector ensures a secure connection. With low earth leakage current, this power supply is particularly suitable for medical devices where patient safety is a priority.

This versatile power supply delivers a maximum output power of 150W, with a single output of 24V DC and 6.2A, making it a dependable power solution for a wide range of professional equipment.

Variant Details

• Size: 24V 6.2A 150W
