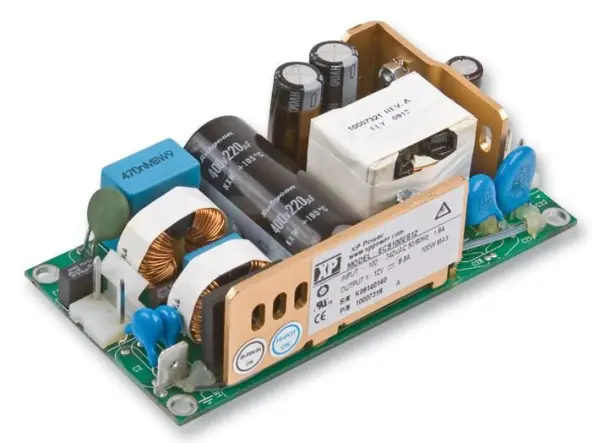

XP Power AC/DC Open Frame Power Supply - 12V 5.4A 65W
- SKU
- C3-PW05464
- EAN
- 3562034142790
- Brand
- XP POWER
XP Power 150W open-frame power supply. 24V DC, 6.25A output, 90% efficiency, convection cooled. Ideal for ITE and 1U rack applications.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Industrial control and automation systems
- Information Technology Equipment (ITE)
- Medical and healthcare equipment
- Test and measurement instruments
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Power Rating (Convection Cooling): 65W
- Input Voltage Range: 80V AC to 264V AC
- Output Type: Single, Adjustable (±10%)
- Output Voltage (Output 1): 12VDC
- Output Current (Output 1): 5.4A
- Typical Efficiency: 88%
- No Load Input Power: <0.5W
- Cooling Method: Convection
- Dimensions (Footprint): 2 x 4 inch (51mm x 102mm)
- Height: 1.05 inch (27mm), 1U Compatible
- Operating Temperature: Full power up to 50°C, operation up to 70°C with derating
- Emissions Compliance: EN55022 Level B
- Earth Leakage Current: 110µA at 115VAC, 210µA at 230VAC
- Safety Approvals: Class I & Class II, IT Medical (2 x MOPP with Risk Management File)
- Fusing: Dual fused for IEC60601-1 compliance
- Weight: 127.459 grams
- Product Range: ECS65 Series
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- SVHC: No SVHC (17-Jan-2023)
