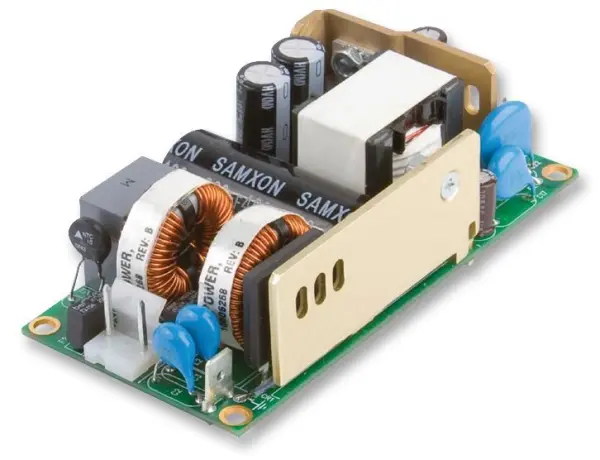

XP Power Open Frame Medical Power Supply - 48V 2.1A 80W 100W
- SKU
- C3-PW04485
- EAN
- 3562034102787
- Brand
- XP POWER
Medical-grade 45W open-frame power supply from XP Power. High efficiency, compact, convection cooled with IEC60601-1 safety approval for medical & IT use.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- **Medical Equipment:** For use in a wide range of medical devices requiring a reliable, safety-approved power source.
- **Information Technology Equipment (ITE):** Suitable for medical IT systems and laboratory equipment.
- **1U Rack Applications:** Ideal for low-profile rack-mounted systems due to its compact 31mm height.
- **Class I and Class II Applications:** Provides design flexibility for different electrical safety constructions.
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- **Model Series:** ECS100 Series
- **Number of Outputs:** 1
- **Output Voltage (Output 1):** 48 VDC
- **Output Current (Output 1):** 2.1 A
- **Input Voltage Range:** 80 - 264 V AC
- **Power Rating (Forced Cooling @ 10 CFM):** 100 W up to 50°C
- **Power Rating (Convection Cooling):** 80 W up to 50°C
- **Maximum Operating Temperature:** 70°C (with derating)
- **Typical Efficiency:** 88%
- **No-Load Input Power:** < 0.5 W
- **Dimensions (Footprint):** 2 x 4 inches (51 x 102 mm)
- **Height:** 1.2 inches (31 mm)
- **Cooling Requirement (for 100W):** 10 CFM
- **Safety Standards:** IEC60601-1, IT Medical 3rd Edition
- **Safety Protection:** 2 x MOPP (Means of Patient Protection)
- **EMC Standards:** EN55022 Class B
- **Leakage Current:** Low earth leakage
- **Construction:** Class I and Class II approved
- **Fusing:** Dual-fused
- **Package:** Industry standard open frame
- **Weight:** 56.699 grams
- **Height:** 40 mm
- **Width:** 30 mm
- **Depth:** 25 mm
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: ECS100 Series
- SVHC: No SVHC (16-Jul-2019)
