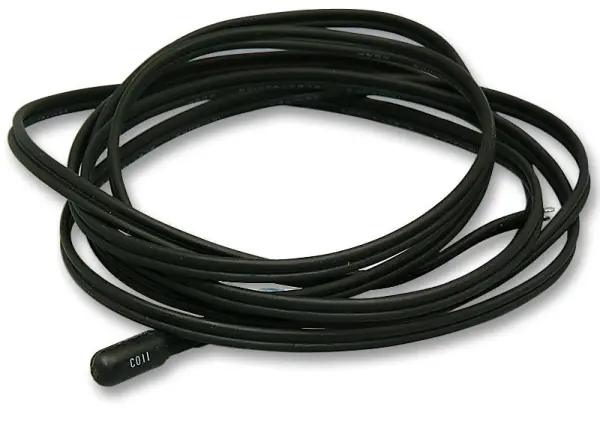

Carel NTC Thermistor Probe 10kohm, Polyolefin, IP65, 1.5 m Cable

Carel NTC Thermistor Probe 10kohm is a temperature sensor with a polyolefin probe body and an IP65 rating, fitted with a 1.5 m cable for flexible connection to a control system.

Overview

The Carel NTC (Negative Temperature Coefficient) thermistor probe is housed in a polyolefin body. Its IP65 enclosure rating provides protection against dust ingress and water jets from any direction, making it suitable for applications where exposure to moisture is a concern. The probe features a 1.5-metre cable, providing length for installation and connection to a control system.

Performance

The probe has a resistance of 10kohm at 25°C with a tolerance of ±1%. It uses a B-constant of 3435K, giving a defined resistance-to-temperature relationship. The free-hanging mounting style allows the probe to be placed within the medium to be measured, and the thermal time constant is 75 seconds in air.

Key Specifications

• Sensor type: NTC thermistor
• Enclosure rating: IP65 (dust-tight and protected against water jets)
• Cable length: 1.5 metres
• Probe body material: Polyolefin (PO)
• Resistance at 25°C: 10kohm ±1%
• B-constant: 3435K
• Mounting: Free hanging
• Operating temperature range: -50°C to +105°C
• Thermal time constant (in air): 75 seconds
• Dimensions (approx.): 43 mm H x 33 mm W x 15 mm D
• Weight: 1 gm

Applications

The probe is intended for monitoring conditions in refrigeration units, climate control systems, industrial processes, and environmental chambers. Its compact dimensions allow installation in space-restricted locations.

The Carel NTC thermistor probe with IP65 protection and a 1.5 m cable suits monitoring tasks where a compact, moisture-resistant temperature sensor is required.
