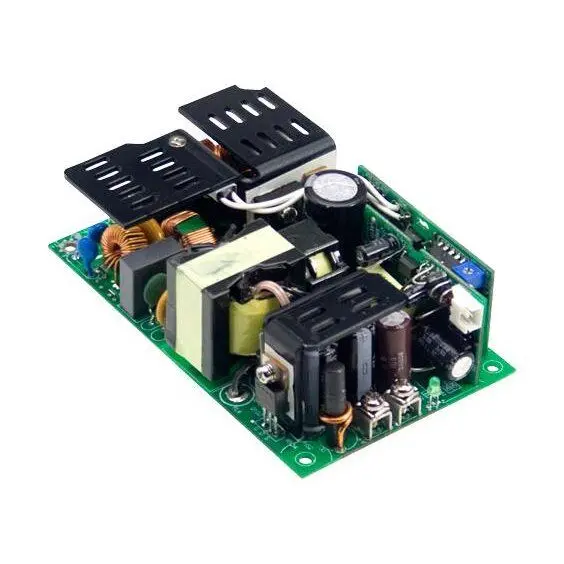

MEAN WELL AC/DC Open Frame Power Supply - 24V 12.5A 300W
- SKU
- C3-PW05245
- EAN
- 3562034132371
- Brand
- MEAN WELL
High-efficiency MEAN WELL AC/DC open frame power supply. 24V output, 252W, low no-load consumption, protections, industrial use.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Information Technology Equipment (ITE)
- System enclosures
- General PCB applications
- Green PCB applications
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Input Voltage: 90V AC to 264V AC
- No. of Outputs: 1 Output
- Power Supply Output Type: Adjustable, Fixed
- Product Range: EPP-300 Series
- Efficiency: Up to 93%
- PFC: Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Surge Protection: Withstands 300V AC surge input for 5 seconds
- Auxiliary Output: Built-in 12V/0.5A
- Remote Sense: Built-in
- Standby Output: 5V (1A with fan, 0.6A without fan)
- No Load Power Consumption: Under 0.5W (by PS-ON control)
- Cooling: Free air convection and forced air
- Compact Size: 5 inch x 3 inch
- Height: 40 mm
- Width: 30 mm
- Depth: 25 mm
- Weight: 397.22 grams
- Power Rating (Convection Cooling): 200W
- Input Voltage VAC: 90V AC to 264V AC
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 8.33A
- SVHC: No SVHC (25-Jun-2025)
