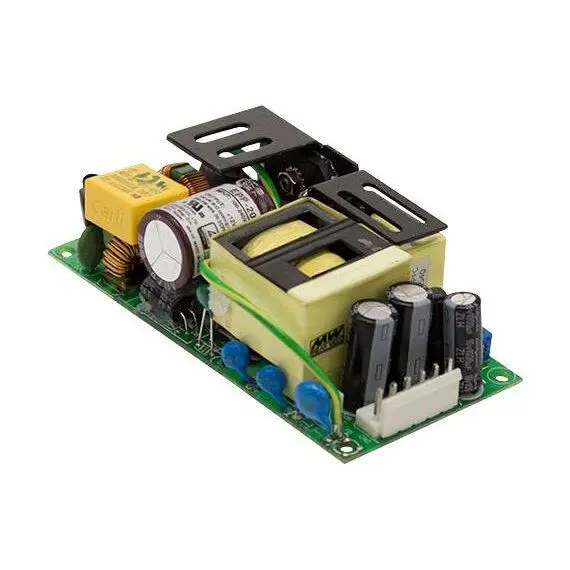

MEAN WELL AC/DC Open Frame Power Supply - 12V 11.7A 140W
- SKU
- C3-PW05400
- EAN
- 3562034142400
- Brand
- MEAN WELL
High-efficiency MEAN WELL AC/DC open frame power supply. 24V output, 252W, low no-load consumption, protections, industrial use.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Electronic instruments
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Series: EPP-200
- Footprint: 4” x 2”
- No Load Power Consumption: <0.5W
- System Design Compatibility: Class I (with FG), Class II (no FG)
- Number of Outputs: 1
- Output Type: Adjustable, Fixed
- Output Voltage 1: 12VDC
- Output Current 1: 11.7A
- Power Rating (Convection Cooling): 140W
- Power Rating (Forced Cooling): 200W @ 10CFM
- Input Voltage Range: 80 to 264VAC, 113 to 370VDC
- Power Factor Correction: Built-in active PFC
- Typical Efficiency: 94%
- Protection Features: Short circuit, overload, over voltage, over temperature
- Cooling Method: Free air convection, forced air (10CFM)
- Fan Supply: Built-in 12V/0.5A
- Indicator: LED power on
- Operating Altitude: Up to 5000 metres
- Working Temperature Range: -30°C to +70°C
- Safety Approvals: UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004
- Application: ITE
- PCB Dimensions (L x W x H): 101.6 x 50.8 x 29mm
- Product Dimensions (H x W x D): 40 x 30 x 25mm
- Weight: 204.17 grams
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 12VDC
- Output Current - Output 1: 11.7A
- Product Range: EPP-200 Series
- SVHC: No SVHC (25-Jun-2025)
